Components And Components Location: Components

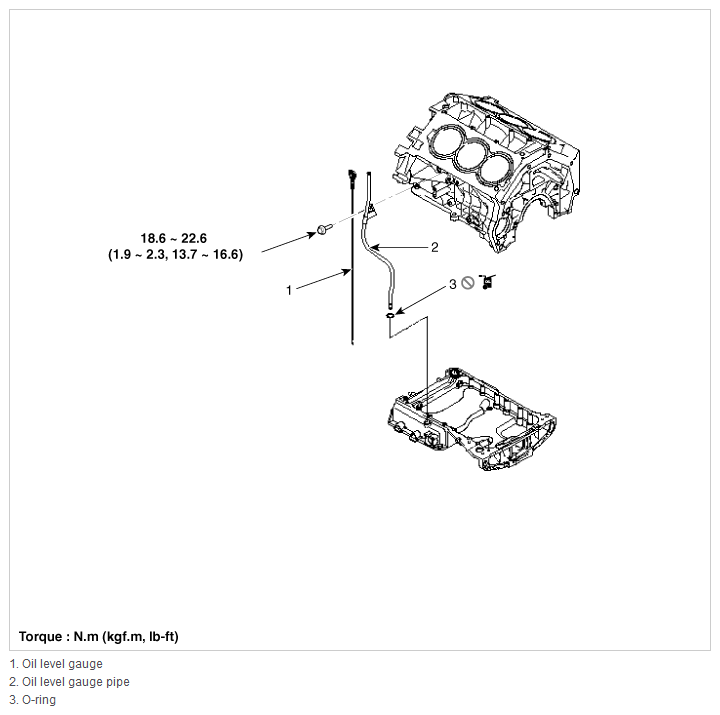

Fig 1: Oil Level Gauge & Pipe Components With Torque Specification
G12087050Courtesy of HYUNDAI MOTOR AMERICA
