Components And Components Location: Components

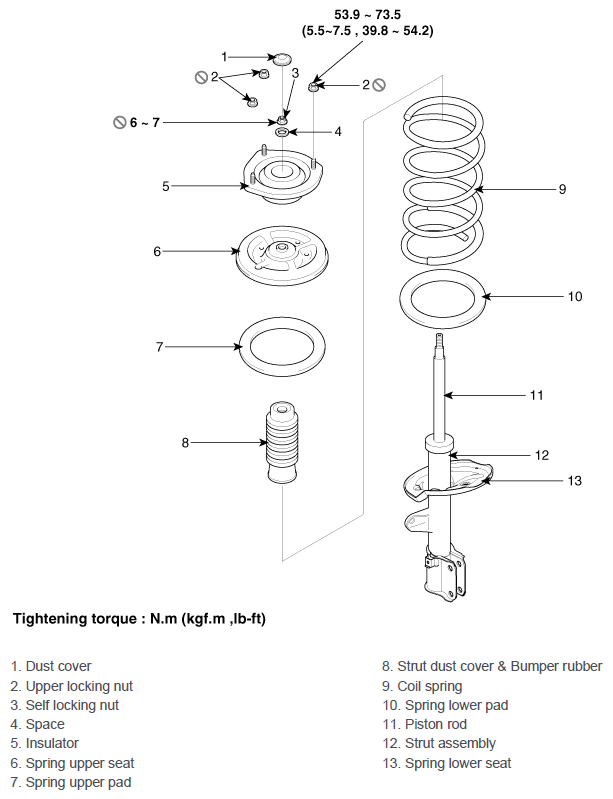

Fig 1: Front Strut Assembly Components With Torque Specification
G12089302Courtesy of HYUNDAI MOTOR AMERICA
