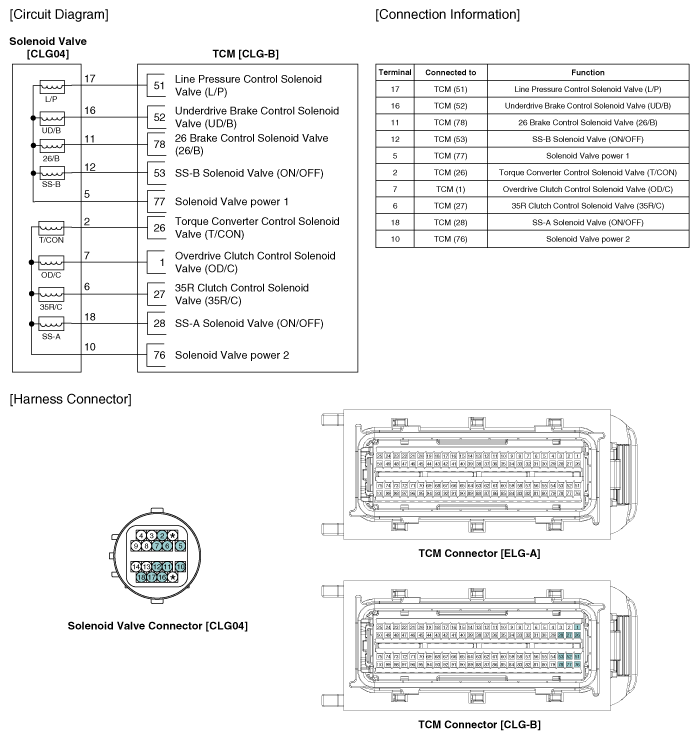

Home › Hyundai › 2017 › Azera Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Line Pressure Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
