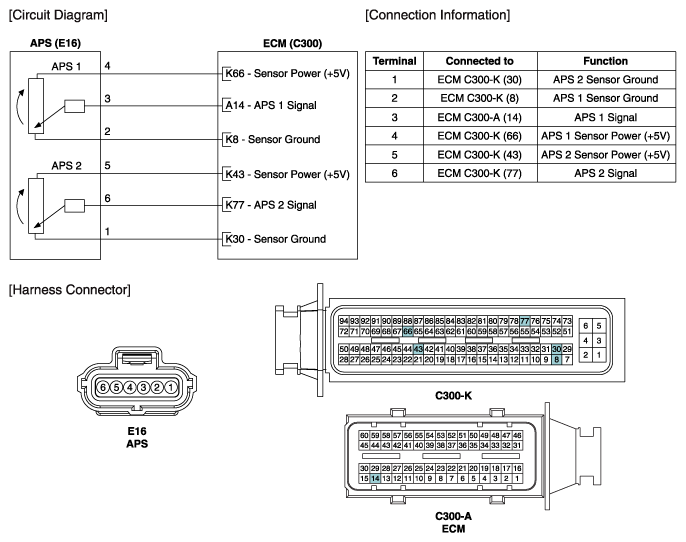

Home › Hyundai › 2017 › Elantra Eco › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.4L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
