Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

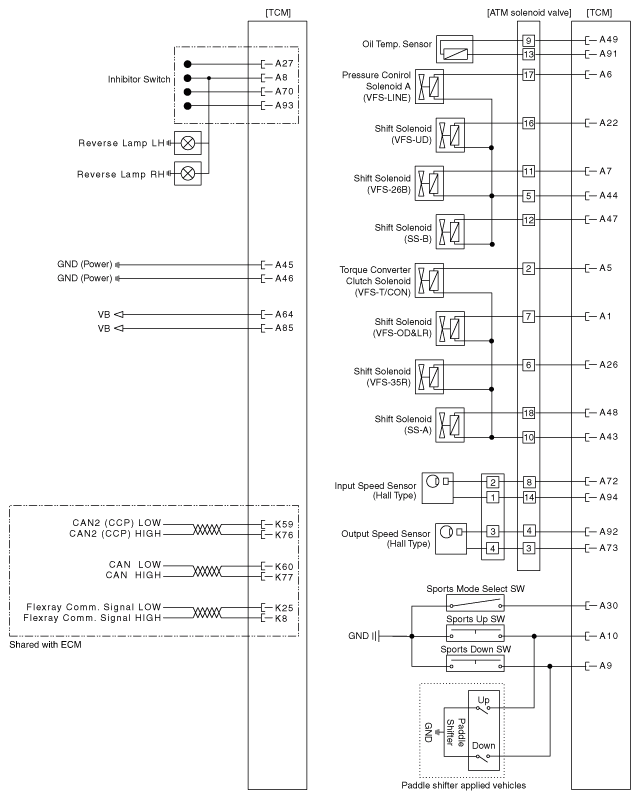

Fig 1: TCM Circuit
G12025199Courtesy of HYUNDAI MOTOR AMERICA

[Inhibitor switch]

Fig 2: Inhibitor Switch Circuit
G12025200Courtesy of HYUNDAI MOTOR AMERICA
