Components And Components Location: Components

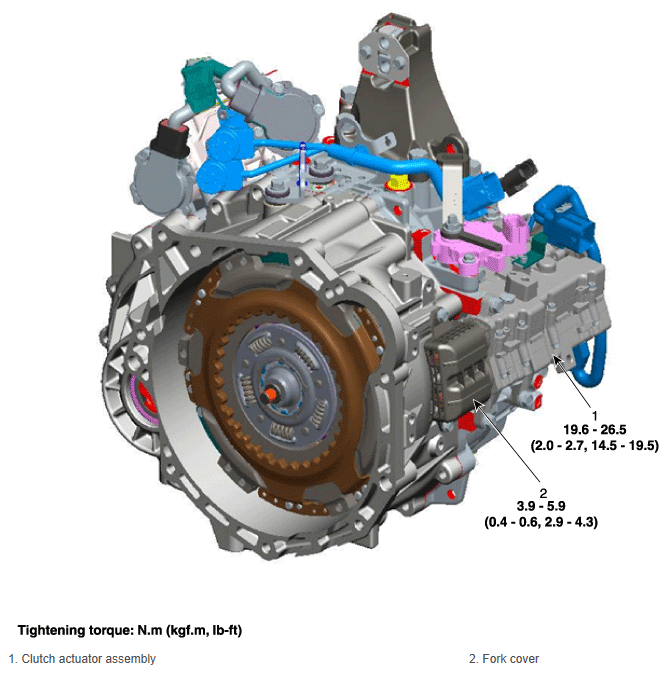

Fig 1: Clutch Actuator Assembly Component With Torque Specification
G12020938Courtesy of HYUNDAI MOTOR AMERICA
