Home › Hyundai › 2017 › Elantra Eco › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.4L › Shift Lever › Components And Components Location › Components

Components And Components Location: Components

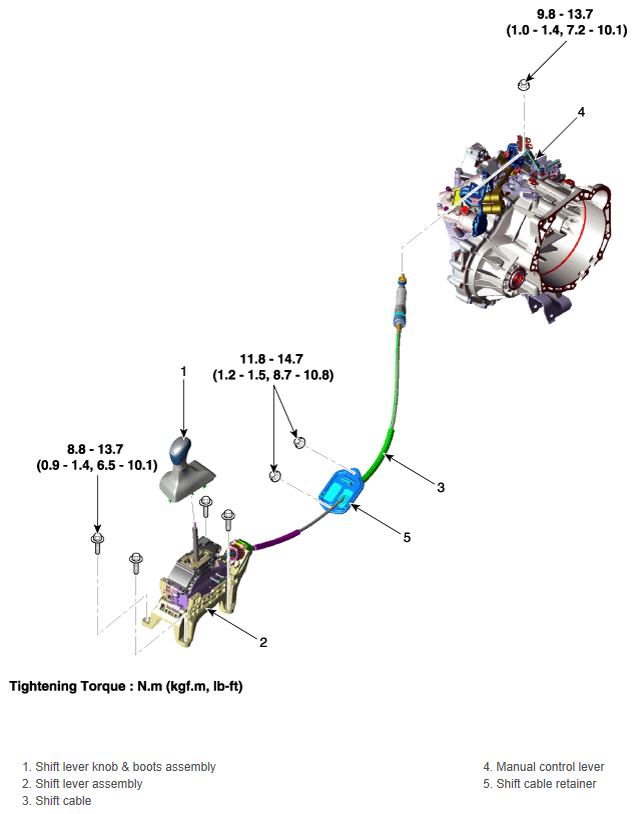

Fig 1: Shift Lever Components With Torque Specification
G12021008Courtesy of HYUNDAI MOTOR AMERICA
