Component Inspection

■ CLU Variant Coding Method and Procedure (Off-line type on GDS)

Fig 1: CLU Variant Coding Method (OFF-Line Type On GDS)

Courtesy of HYUNDAI MOTOR AMERICA

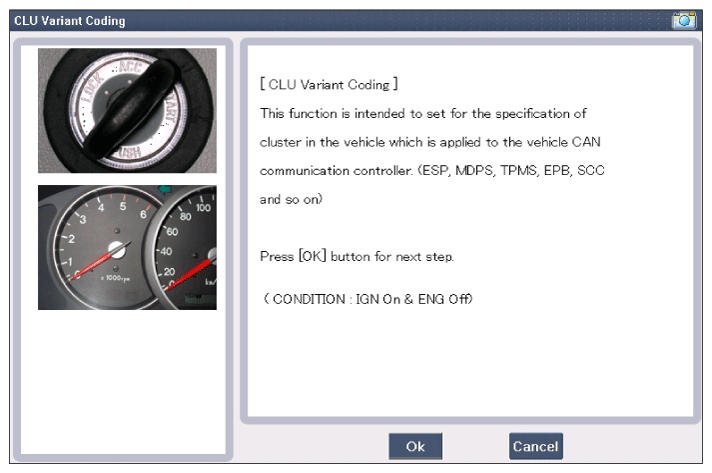

Fig 2: Screen Display - CLU Variant Coding (1 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

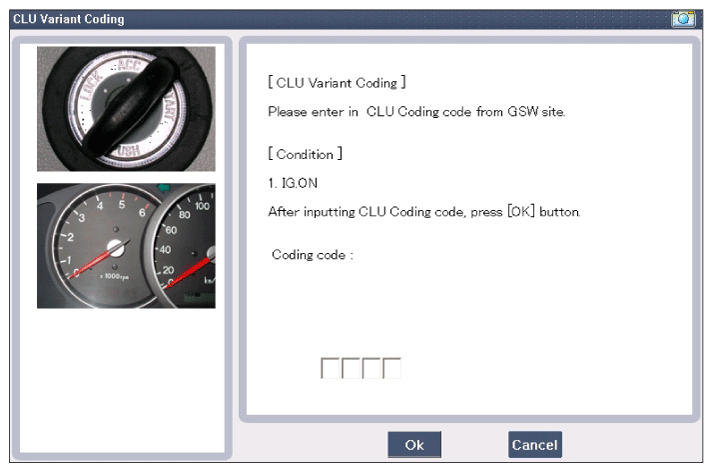

Fig 3: Screen Display - CLU Variant Coding (2 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Screen Display - CLU Variant Coding (3 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

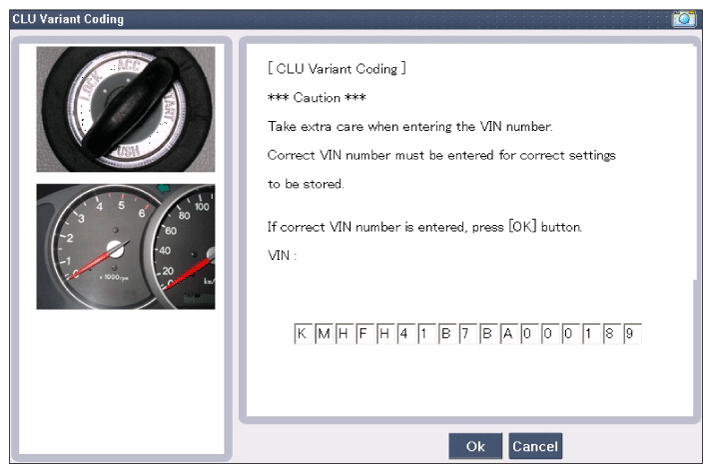

Fig 5: Screen Display - CLU Variant Coding (4 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

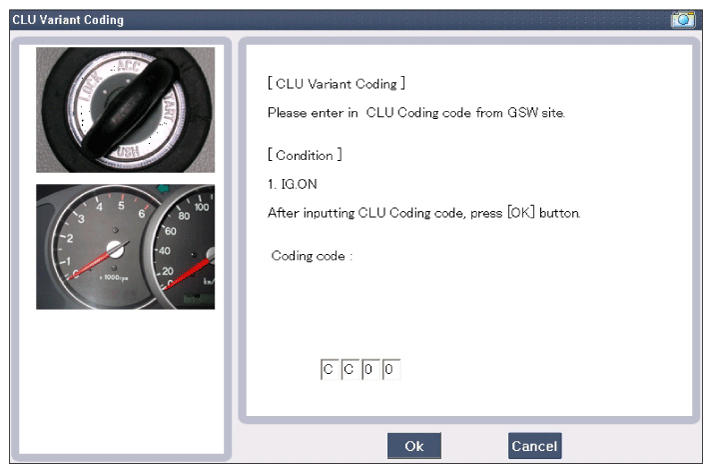

Fig 6: Screen Display - CLU Variant Coding (5 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

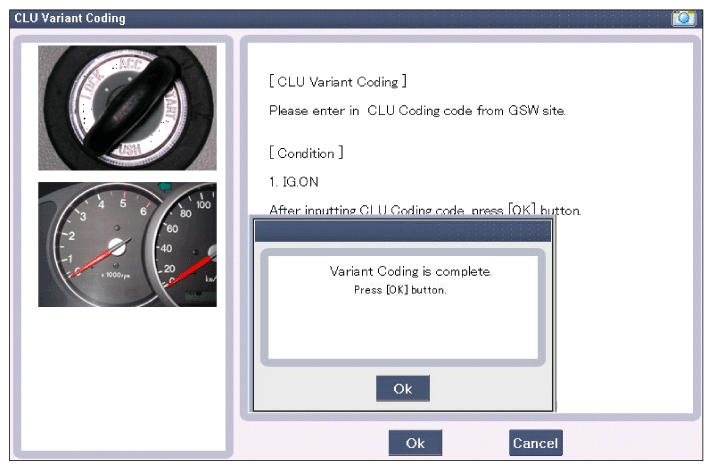

Fig 7: Screen Display - CLU Variant Coding (6 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

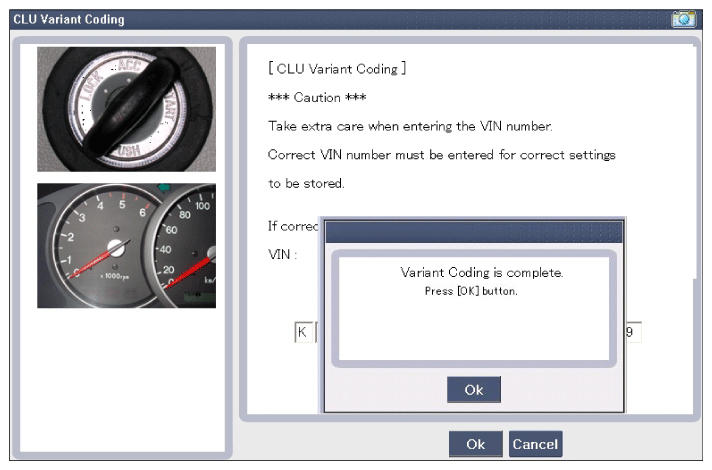

Fig 8: Screen Display - CLU Variant Coding (7 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA
