Components And Components Location: Components

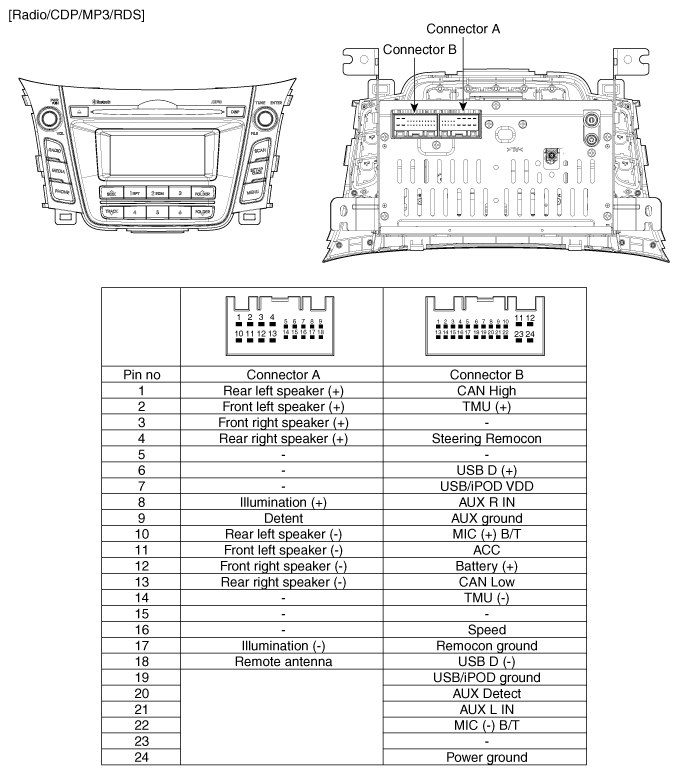

Fig 1: Audio Unit Connector Terminals Description Chart
G12076439Courtesy of HYUNDAI MOTOR AMERICA
