Variant Code Reset

  1. Make sure the condition of ECM/TCM/ESP (ESC) connector.
  2. Connect GDS to Data Link Connector. (DLC).
  3. IG "ON", and then select the model, system (ESP (ESC))
  4. Click the Vehicle S/W Management button. (Fig 1)
  5. Using GDS, Perform Variant Code Reset. (Fig 2)
  6. IG "OFF" and wait for about 10 seconds, and then IG "ON".
  7. IG "OFF" and wait for about 10 seconds again, and then, IG "ON".
  8. Go to "COMPONENT INSPECTION " procedure.

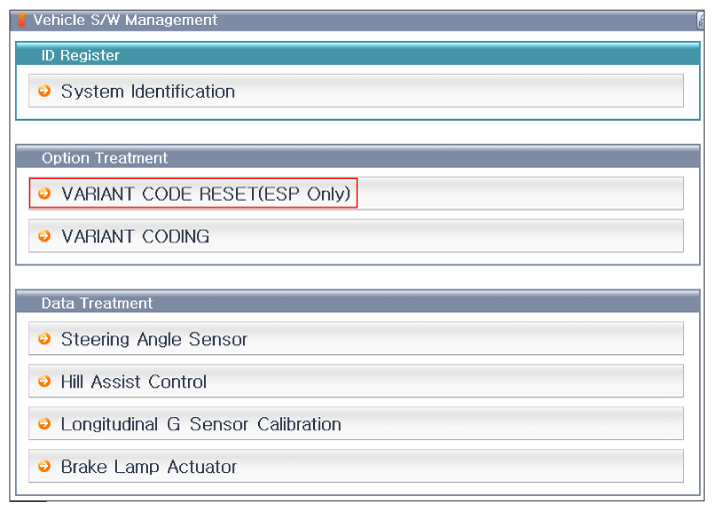

Fig 1: Screen Display - Vehicle S/W Management
G12065077Courtesy of HYUNDAI MOTOR AMERICA

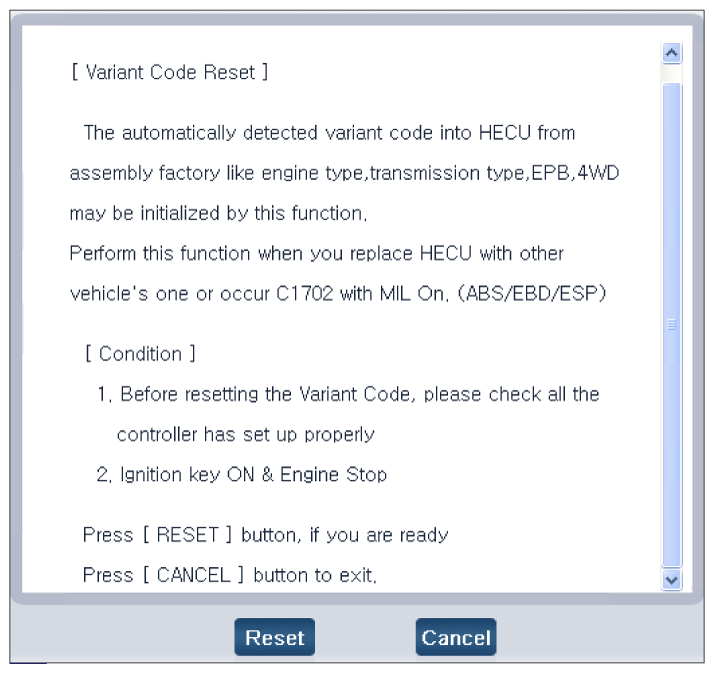

Fig 2: Screen Display - Variant Code Reset
G12065078Courtesy of HYUNDAI MOTOR AMERICA
