Components And Components Location: Components

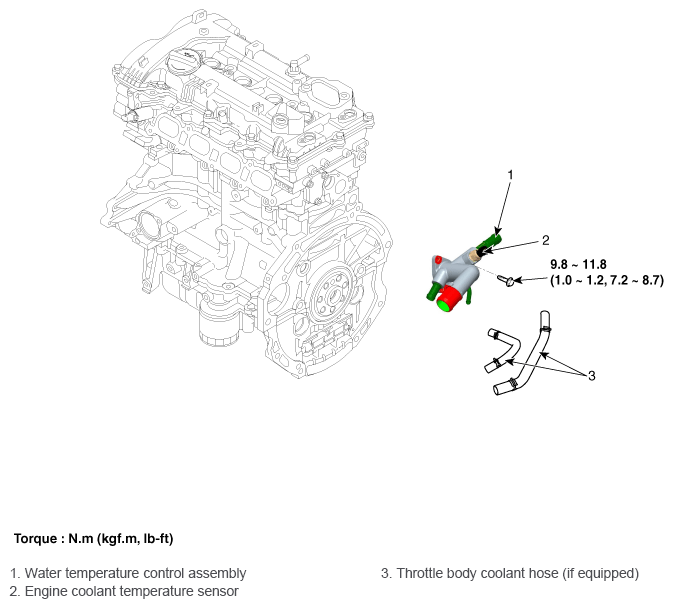

Fig 1: Water Temperature Control Assembly Components With Torque Specifications
G12074245Courtesy of HYUNDAI MOTOR AMERICA
