Body & Frame
›
Door Locks
›
Smart Key System
›
Smart Key Unit
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

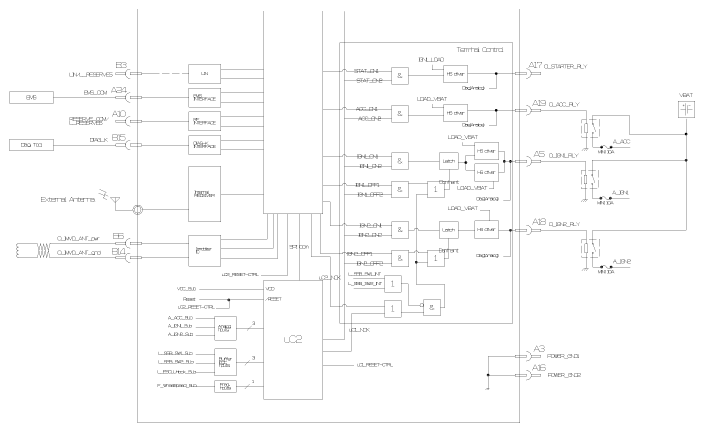

Fig 1: Smart Key Unit Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

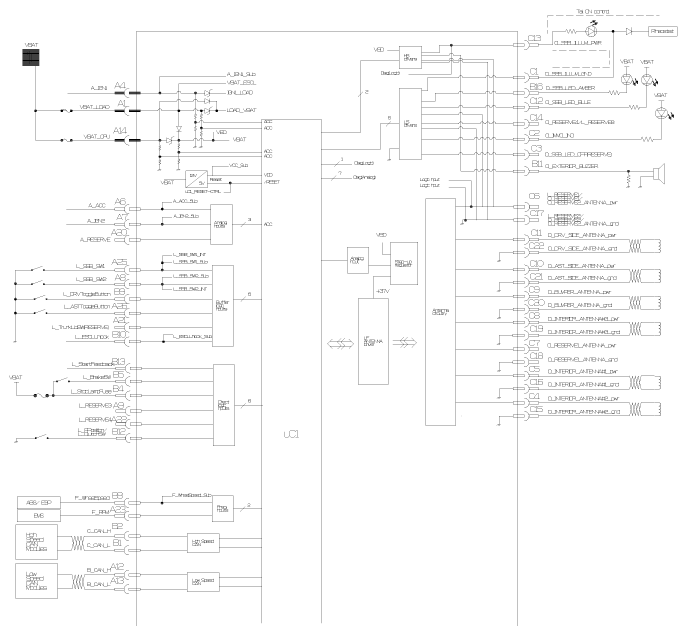

Fig 2: Smart Key Unit Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
