Home › Hyundai › 2017 › Elantra GT Automatic Trans › Repair and Diagnosis › Body & Frame › Seats › Front Seat Assembly › Components And Components Location › Components

Components And Components Location: Components

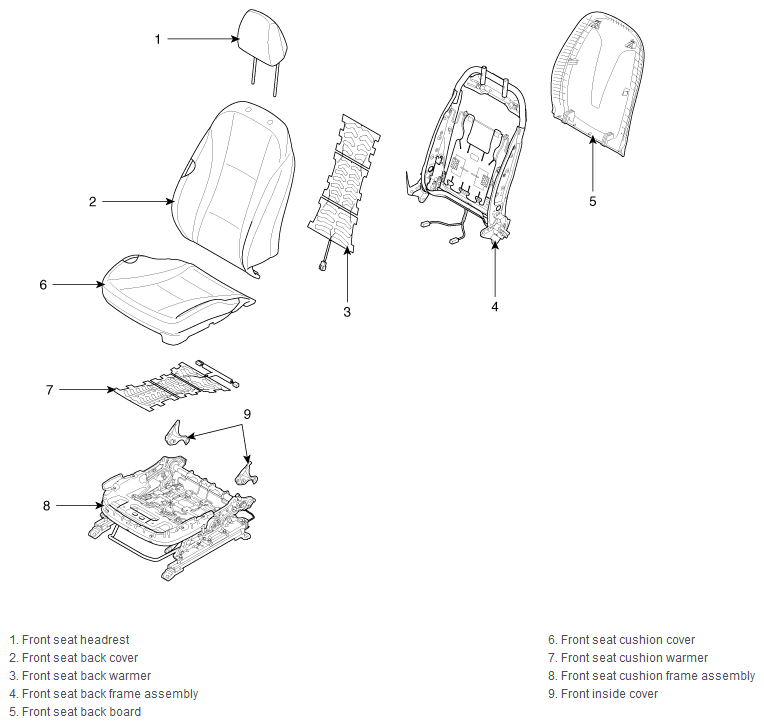

Fig 1: Front Seat Components
G12076305Courtesy of HYUNDAI MOTOR AMERICA
