Driver Power Window Switch: Notes

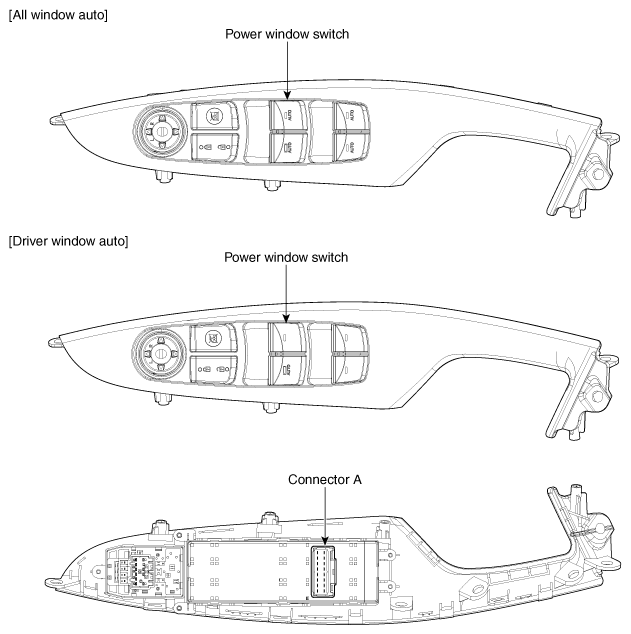

Fig 1: Driver Power Window Switch Connector
G12076746Courtesy of HYUNDAI MOTOR AMERICA

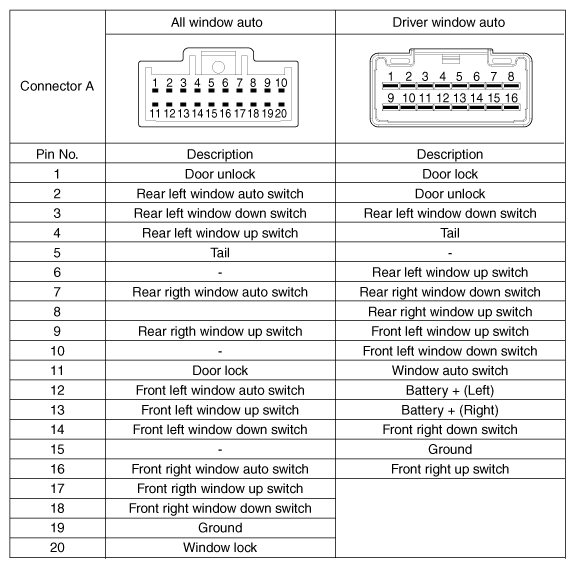

Fig 2: Driver Power Window Switch Connector Terminals Description Chart
G12076747Courtesy of HYUNDAI MOTOR AMERICA
