Components And Components Location: Components

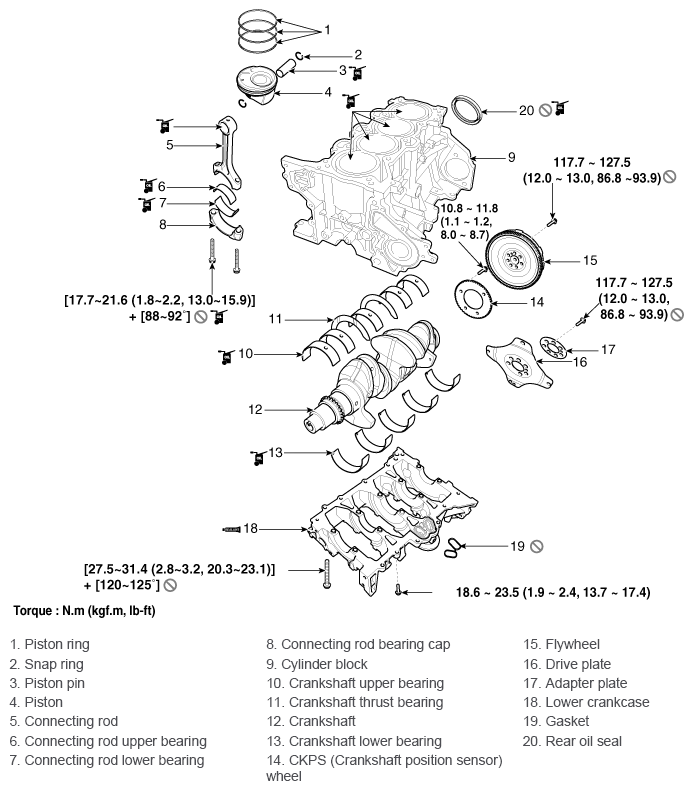

Fig 1: Cylinder Block Components With Torque Specification
G12074164Courtesy of HYUNDAI MOTOR AMERICA
