Components And Components Location: Components

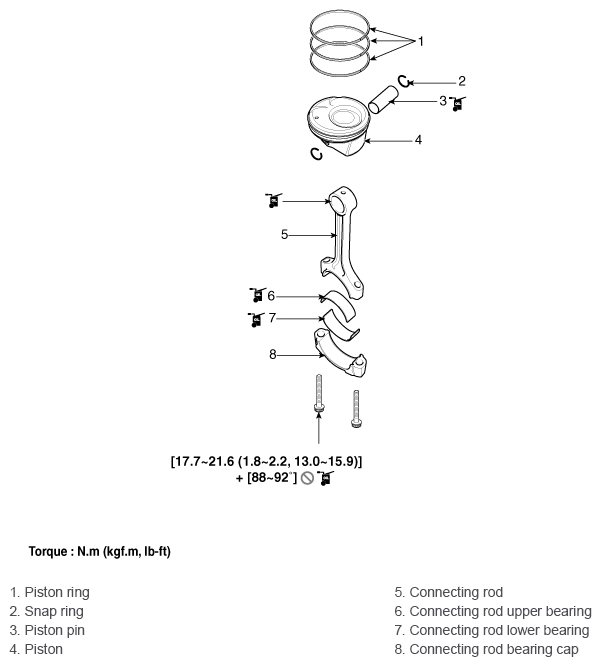

Fig 1: Piston And Connecting Rod Components With Torque Specification
G12074172Courtesy of HYUNDAI MOTOR AMERICA
