Components And Components Location: Components

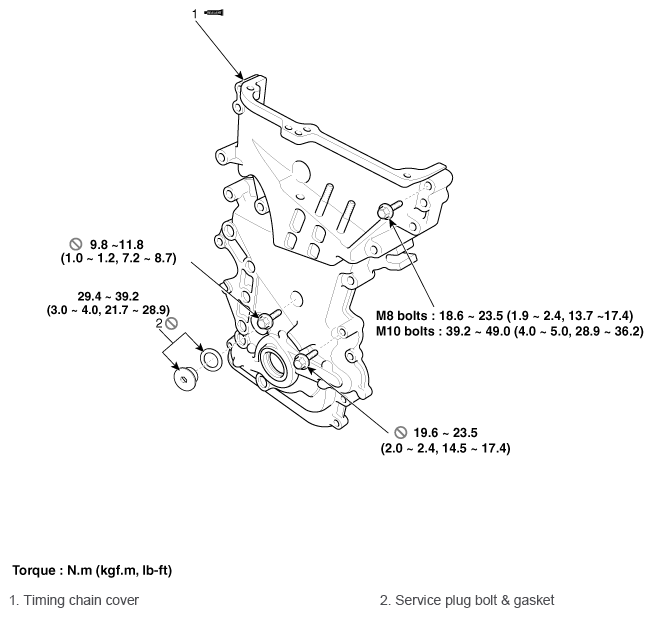

Fig 1: Timing Chain Cover Components With Torque Specification
G12074049Courtesy of HYUNDAI MOTOR AMERICA
