Circuit Diagram: (A/T)

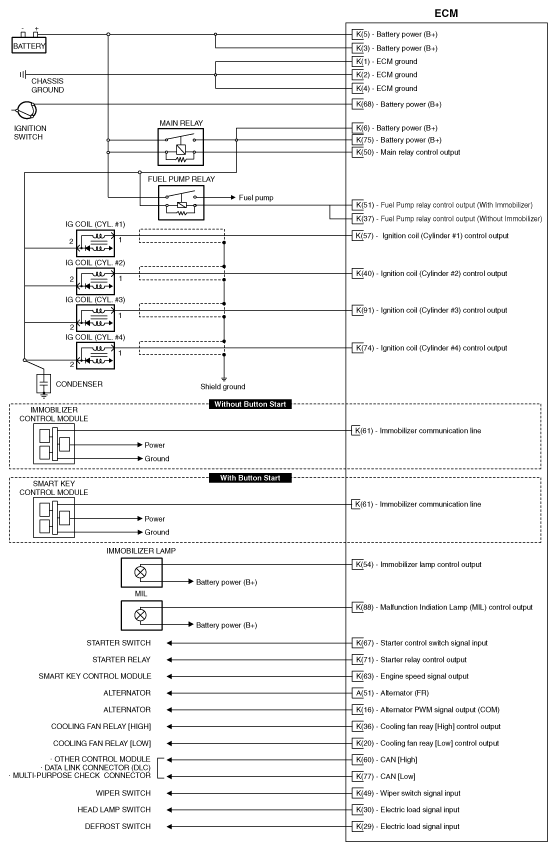

Fig 1: ECM Circuit (A/T; 1 Of 4)
G12066277Courtesy of HYUNDAI MOTOR AMERICA

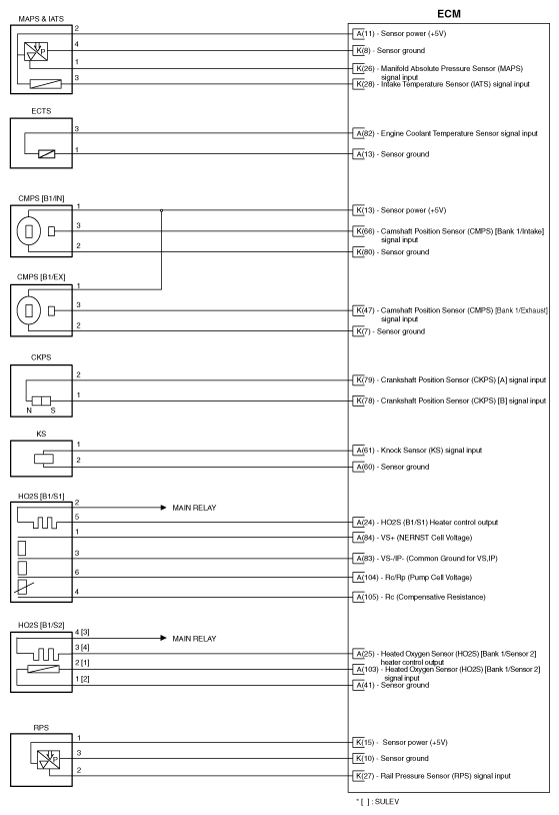

Fig 2: ECM Circuit (A/T; 2 Of 4)
G12066278Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: ECM Circuit (A/T; 3 Of 4)
G12066279Courtesy of HYUNDAI MOTOR AMERICA

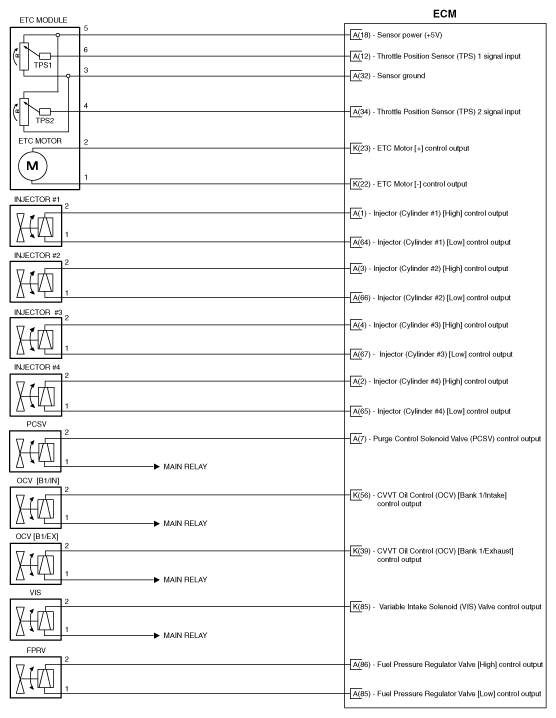

Fig 4: ECM Circuit (A/T; 4 Of 4)
G12066280Courtesy of HYUNDAI MOTOR AMERICA
