Circuit Diagram: (A/T)

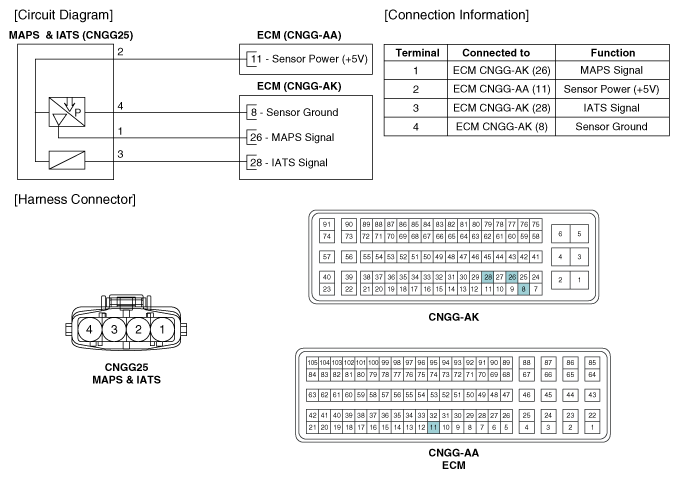

Fig 1: Intake Air Temperature Sensor Circuit (A/T)
G12066298Courtesy of HYUNDAI MOTOR AMERICA
