Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Disconnect the back up lamp switch connector (A).

Fig 1: Disconnecting Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

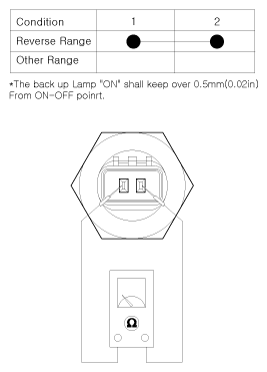

Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

Fig 2: Checking Continuity Between Backup Lamp Switch Terminals (1 And 2)

Courtesy of HYUNDAI MOTOR AMERICA
