Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & engine "OFF".
Select "Current Data" mode and monitor "Inhibitor switch" parameter.
Change a shift lever from P-range to D-range.

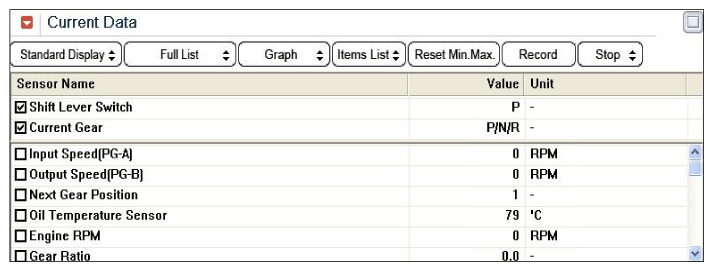

Fig 1: Scantool Display - P Range
Courtesy of HYUNDAI MOTOR AMERICA

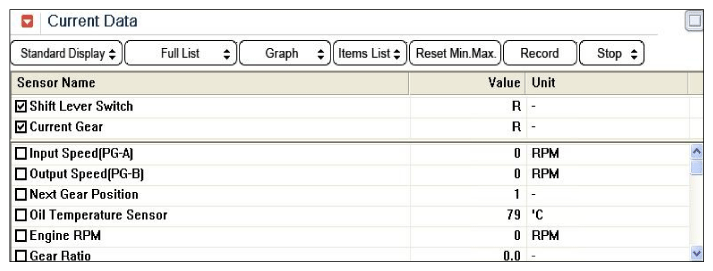

Fig 2: Scantool Display - R Range
Courtesy of HYUNDAI MOTOR AMERICA

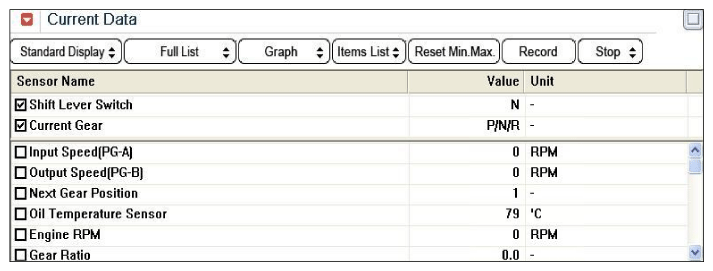

Fig 3: Scantool Display - N Range
Courtesy of HYUNDAI MOTOR AMERICA

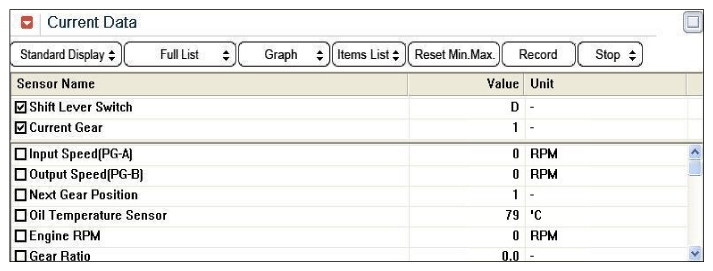

Fig 4: Scantool Display - D Range
Courtesy of HYUNDAI MOTOR AMERICA
Is the Inhibitor switch value changed in specification?
YES
- P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. So do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.
NO
- Go to "SHIFT CABLE ALIGNMENT INSPECTION " procedure.
