Inhibitor Switch
›
Repair Procedures
›
Inspection
›
Inspection flow
Inspection flow

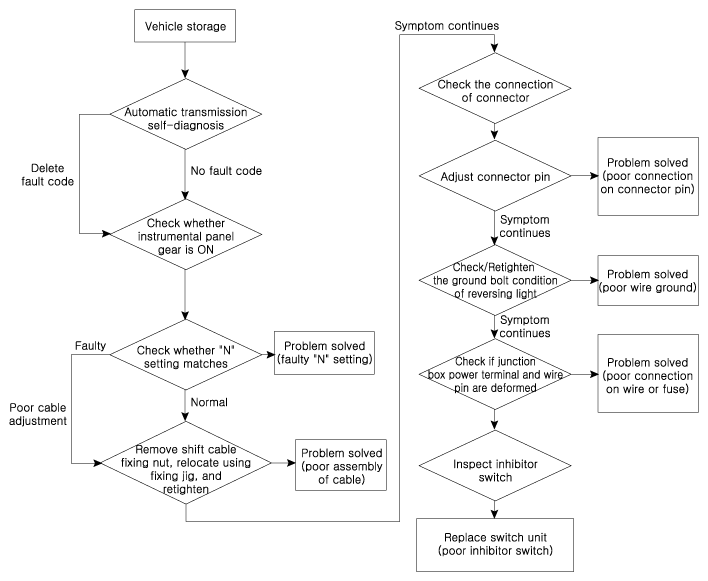

Fig 1: Automatic Transmission Troubleshooting Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
