Smart Key Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "SMK STATUS INFO".

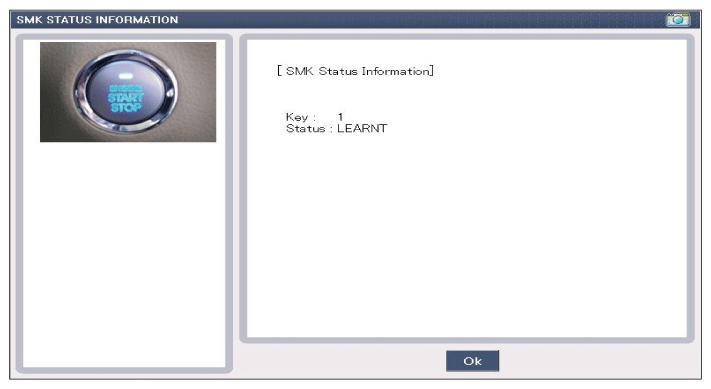

Fig 1: Screen Display - SMK Status Information (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - SMK Status Information (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
