Component
Components And Components Location: Component

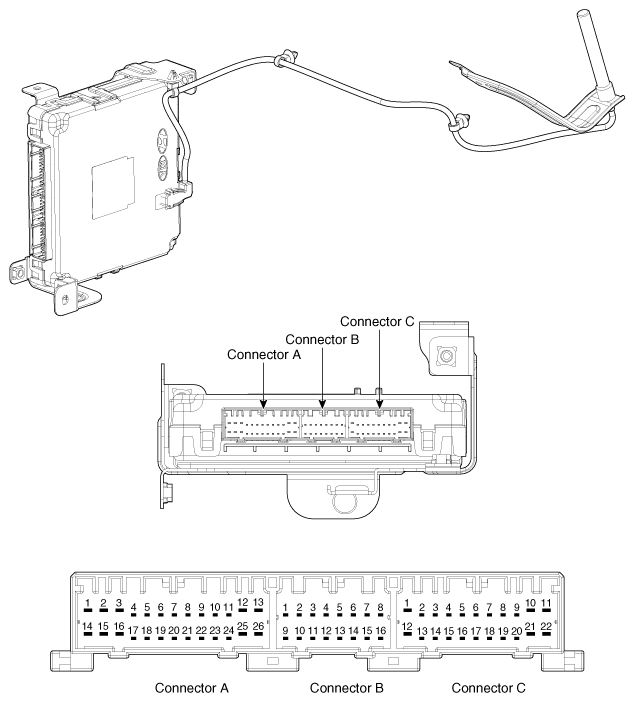

Fig 1: Smart Key Unit Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
