Components And Components Location: Components

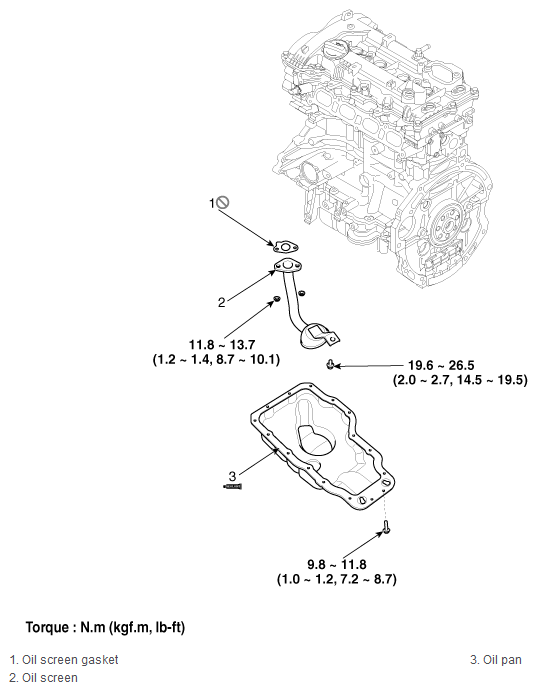

Fig 1: Oil Pan Components With Torque Specification
G12074260Courtesy of HYUNDAI MOTOR AMERICA
