Components And Components Location: Components

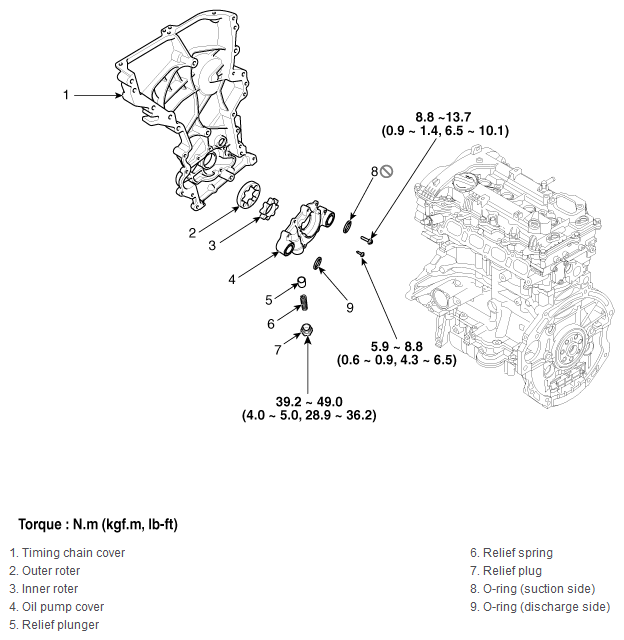

Fig 1: Oil Pump Components With Torque Specification
G12074266Courtesy of HYUNDAI MOTOR AMERICA
