Home › Hyundai › 2017 › Elantra Limited › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › Schematic Diagrams › Notes

Schematic Diagrams: Notes

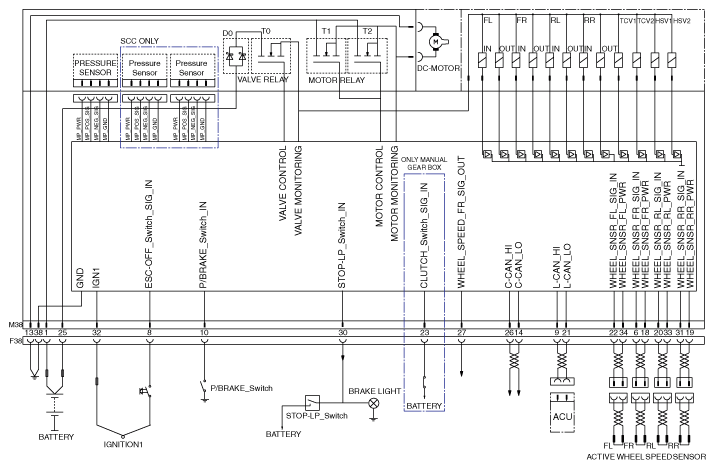

Fig 1: Electronic Stability Control System Schematic
G12027063Courtesy of HYUNDAI MOTOR AMERICA
