Components And Components Location: Components

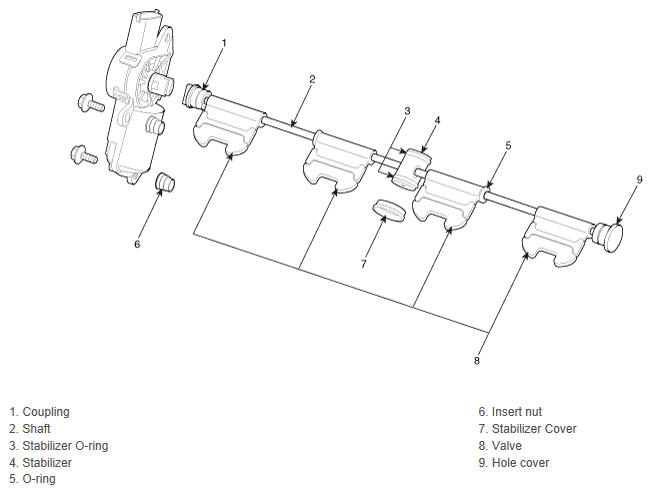

Fig 1: Variable Charge Motion Actuator Components
G12024952Courtesy of HYUNDAI MOTOR AMERICA
