Component And Components Location: Components

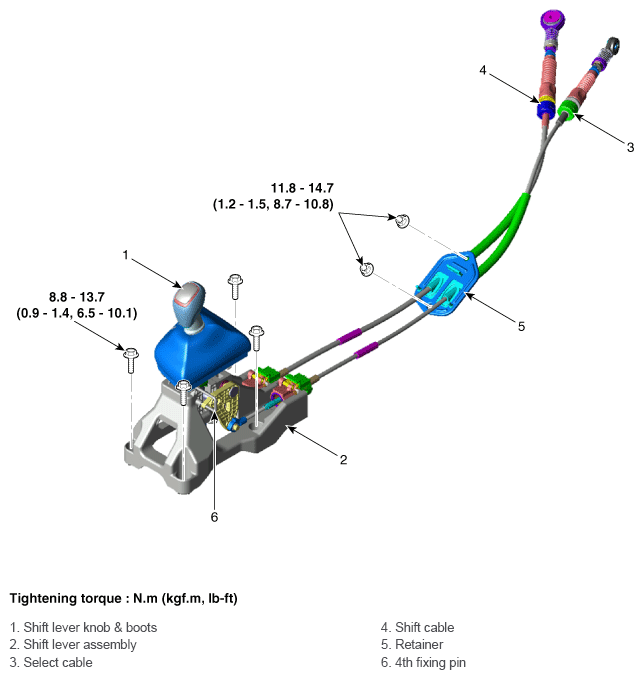

Fig 1: Control Cable Components With Torque Specifications
G12025098Courtesy of HYUNDAI MOTOR AMERICA
