Component And Components Location: Components

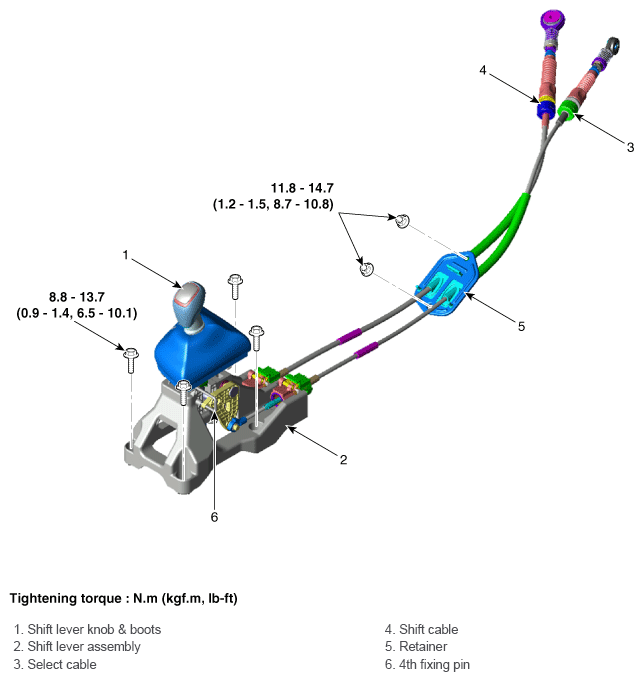

Fig 1: Shift Lever Components With Torque Specifications
G12025092Courtesy of HYUNDAI MOTOR AMERICA
