Wave Form

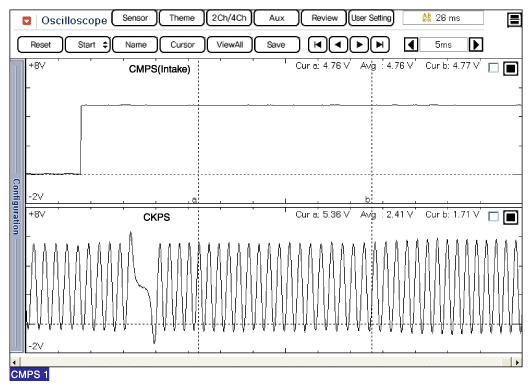

Fig 1: Screen Display - Camshaft Position Sensor Signal Waveform (1 Of 2)
G12024200Courtesy of HYUNDAI MOTOR AMERICA

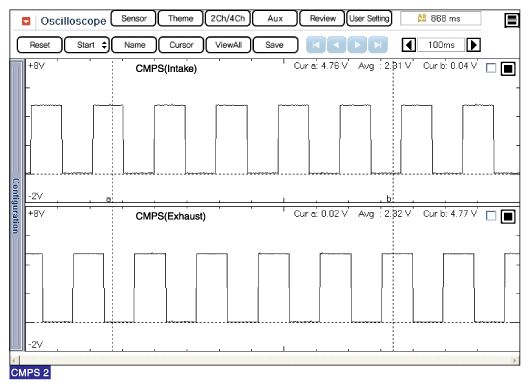

Fig 2: Screen Display - Camshaft Position Sensor Signal Waveform (2 Of 2)
G12024201Courtesy of HYUNDAI MOTOR AMERICA
