Component And Components Location: Components

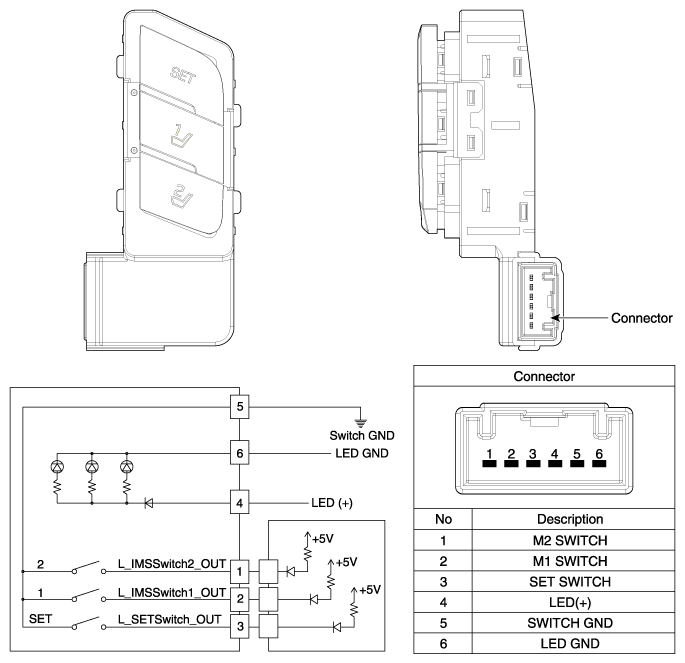

Fig 1: Memory Power Seat Switch Circuit, Connector And Terminal Description Chart
G12023417Courtesy of HYUNDAI MOTOR AMERICA
