Home › Hyundai › 2017 › Elantra Value Edition › Repair and Diagnosis › Body & Frame › Windows › Power Windows › Power Window Motor › Components And Components Location › Components

Components And Components Location: Components

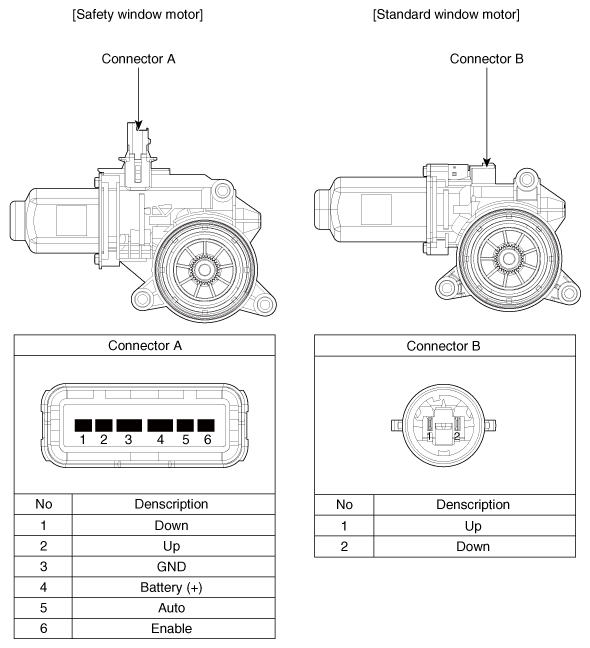

Fig 1: Power Window Motor Connectors
G12023599Courtesy of HYUNDAI MOTOR AMERICA
