[Rear Power Window Switch]

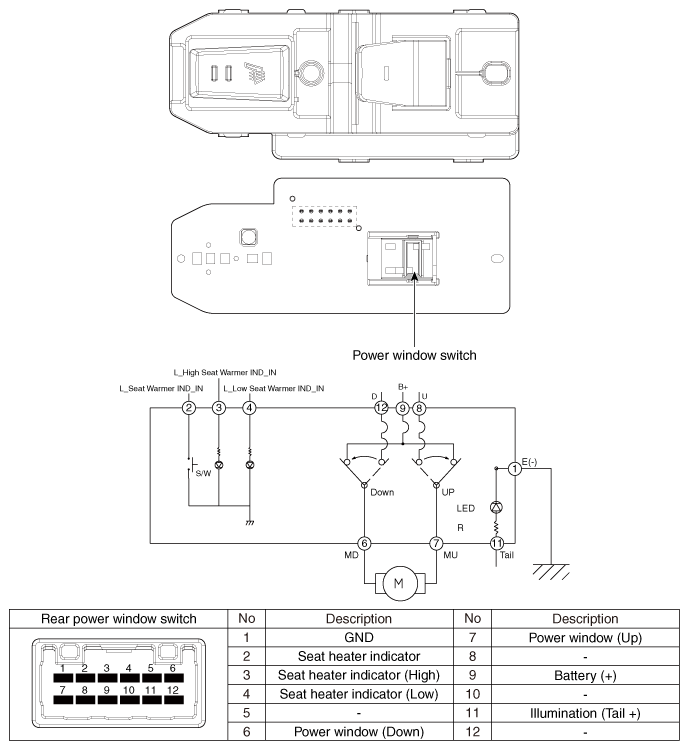

Fig 1: Rear Power Window Switch Circuit Diagram And Connector Terminals
G12023608Courtesy of HYUNDAI MOTOR AMERICA
