Components And Components Location: Components

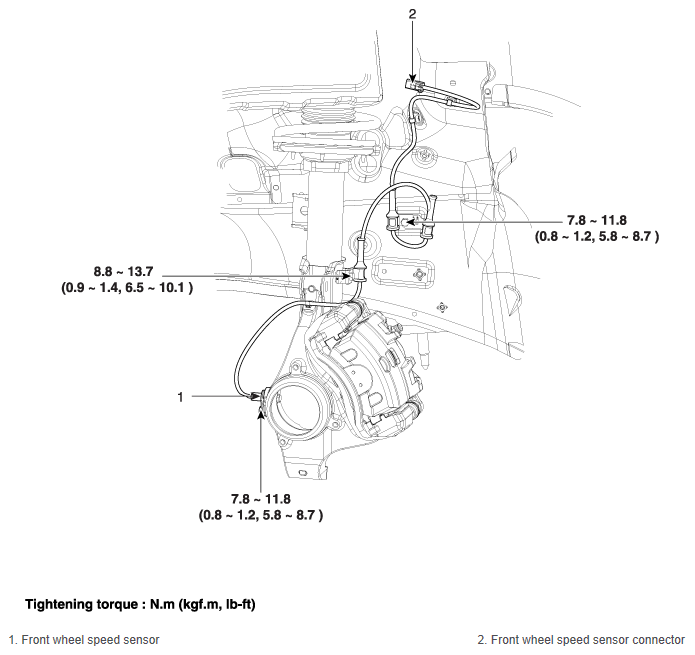

Fig 1: Front Wheel Speed Sensor Components With Torque Specification
G12027086Courtesy of HYUNDAI MOTOR AMERICA
