Circuit Diagram

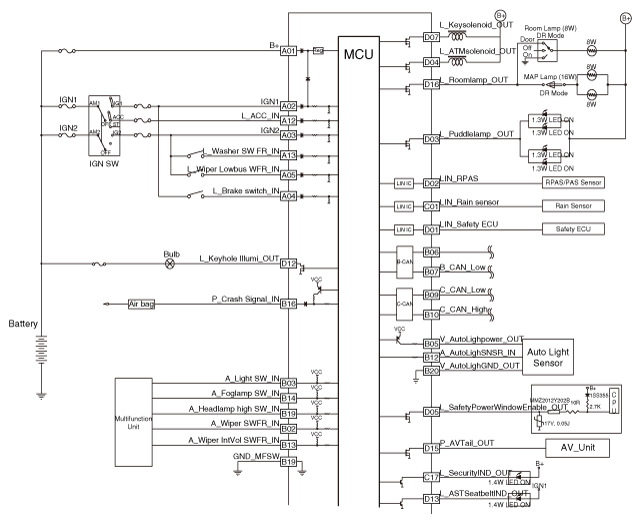

Fig 1: Body Control Module Circuit (1 Of 2)
G12023401Courtesy of HYUNDAI MOTOR AMERICA

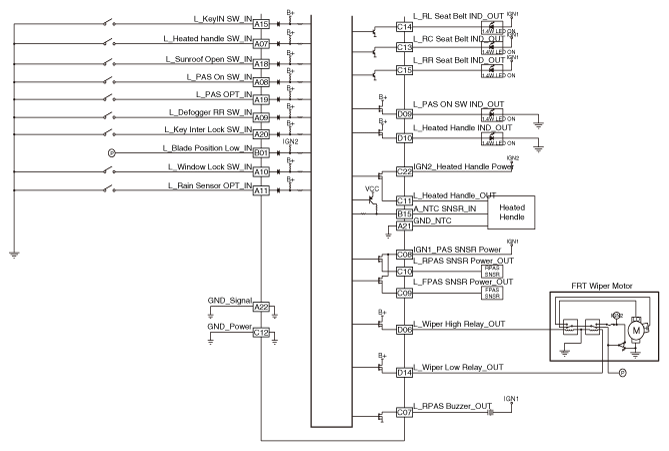

Fig 2: Body Control Module Circuit (2 Of 2)
G12023402Courtesy of HYUNDAI MOTOR AMERICA
