Components And Components Location: Components

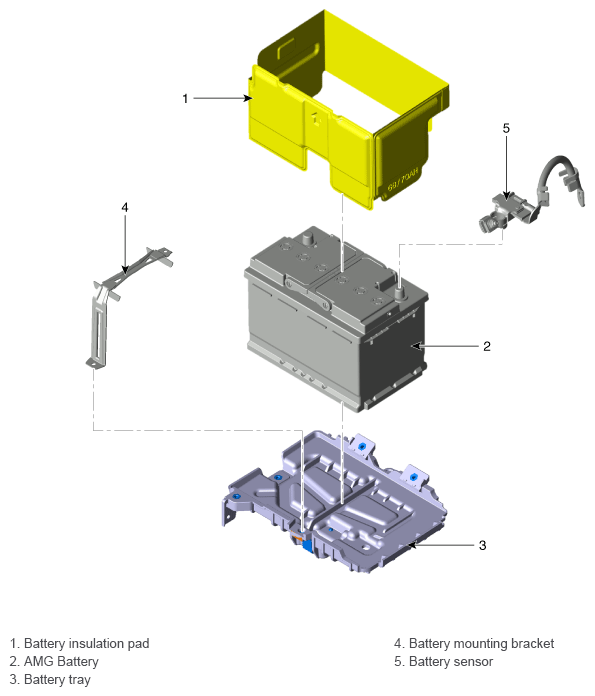

Fig 1: AGM Battery Components
G12024773Courtesy of HYUNDAI MOTOR AMERICA
