Engine Starting System - 2.0L: Troubleshooting

NOTE:

• The battery must be in good condition and fully charged for this troubleshooting.

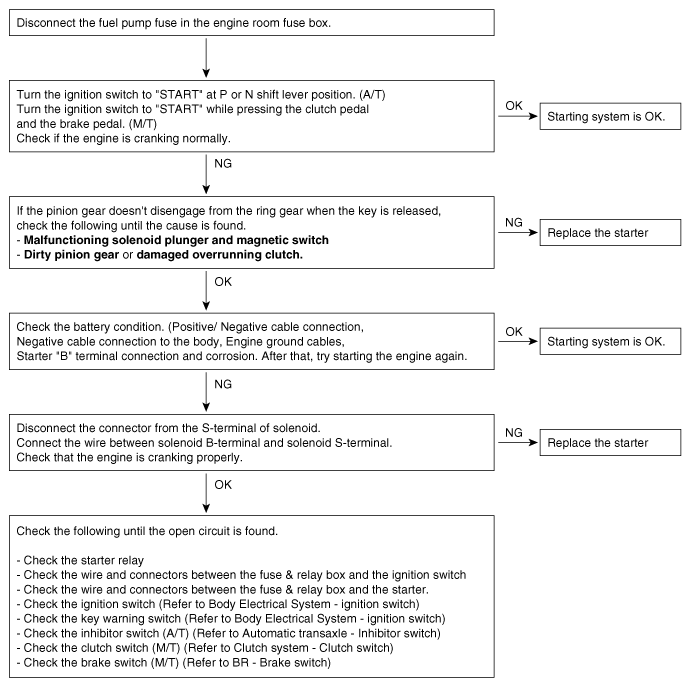

Fig 1: Starting System Troubleshooting Chart

Courtesy of HYUNDAI MOTOR AMERICA
