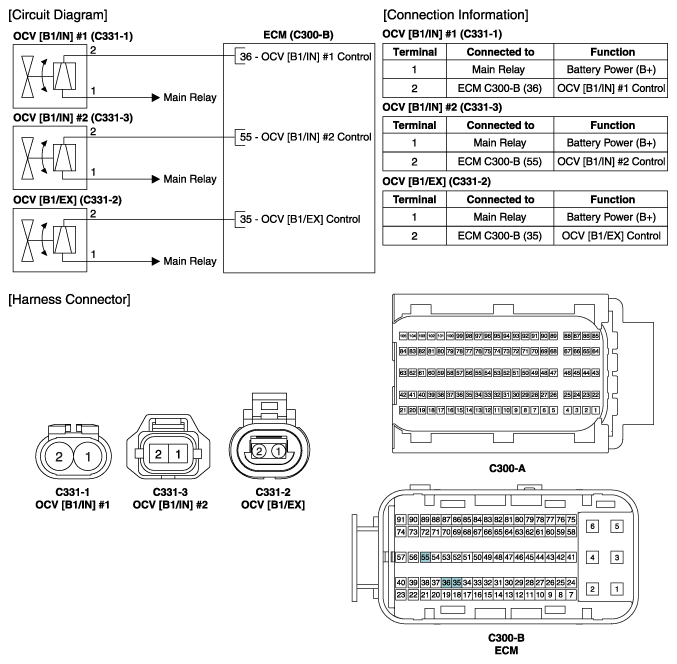

Home › Hyundai › 2017 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › CVVT Oil Control Valve (OCV) › Schematic Diagrams › Circuit Diagram
