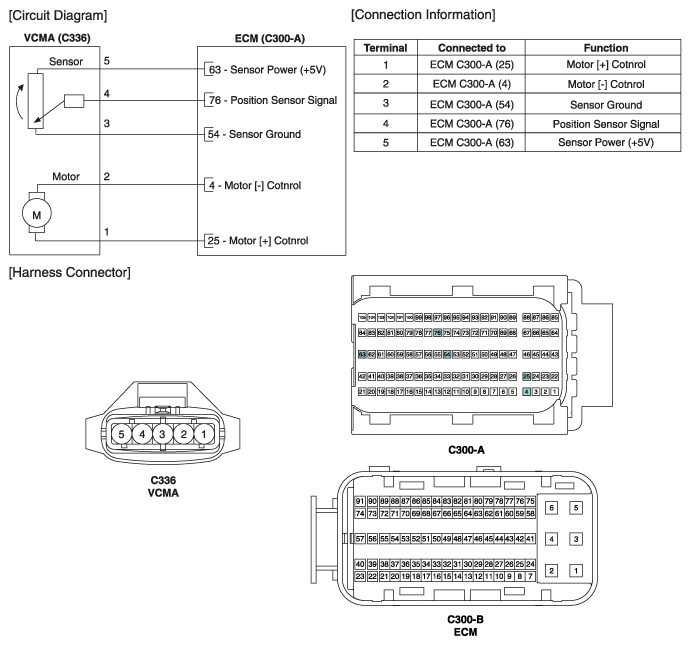

Home › Hyundai › 2017 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Variable Charge Motion Actuator (VCMA) › Schematic Diagrams › Circuit diagram
