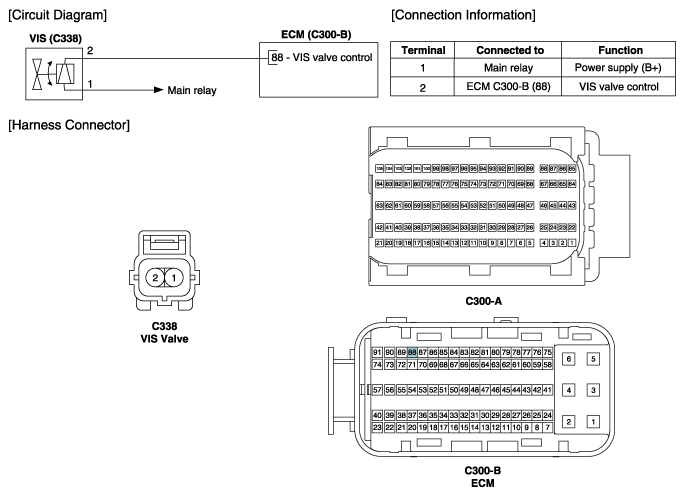

Home › Hyundai › 2017 › Elantra Value Edition › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Variable Intake Solenoid (VIS) Valve › Schematic Diagrams › Circuit Diagram
