Engine Control System Diagnosis - 2.0L (1 Of 3)
›
DTC P0133-00: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1)
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

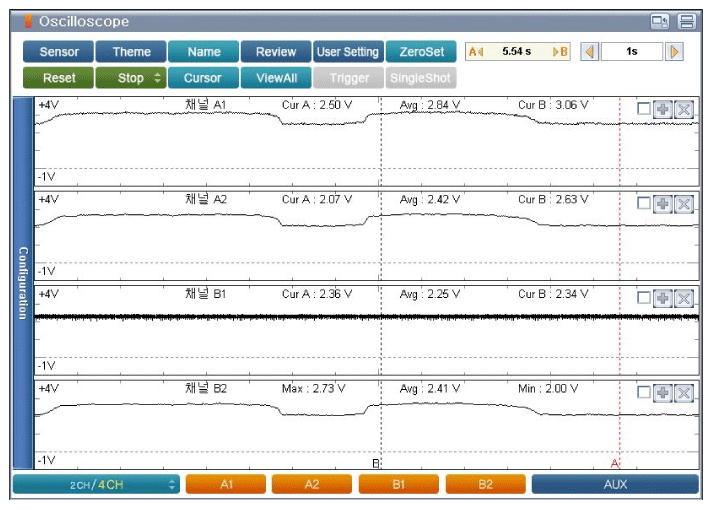

Fig 1: Screen Display - Normal Waveform Of Front Heated Oxygen Sensor (S1) (Engine Idle)
Courtesy of HYUNDAI MOTOR AMERICA
CH A1 (Nernst cell voltage), CH A2 (Pump cell voltage), CH B1 (Common ground), CH B2 (Compensative resistance)
Courtesy of HYUNDAI MOTOR AMERICA
