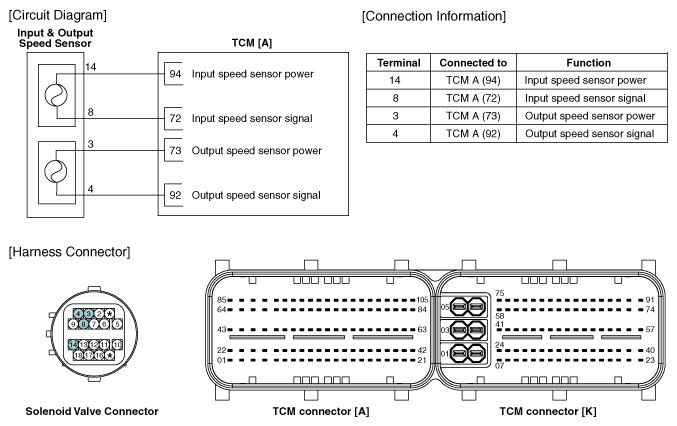

Home › Hyundai › 2017 › Elantra Value Edition › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
