Shift Cable
›
Component And Components Location
›
Components Location
Components Location

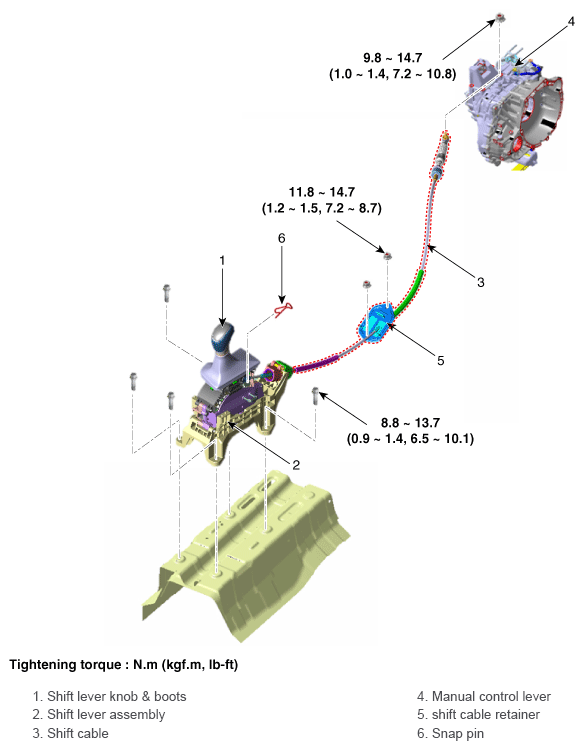

Fig 1: Shift Cable Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
