Repair Procedures: Removal

Oil-pressure characteristics backup (TCM exchange)

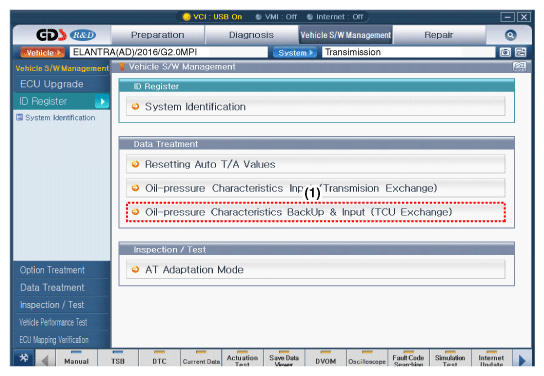

Fig 1: Screen Display - Oil-Pressure Characteristics Backup (TCM Exchange; 1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

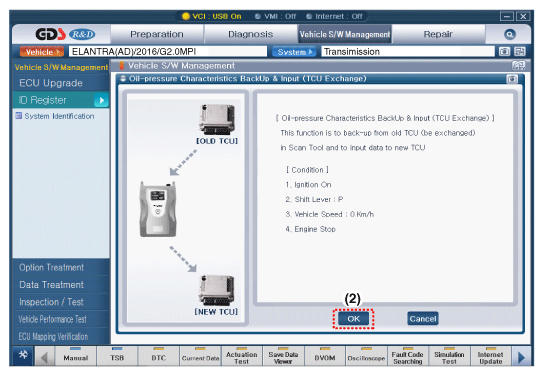

Fig 2: Screen Display - Oil-Pressure Characteristics Backup (TCM Exchange; 2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

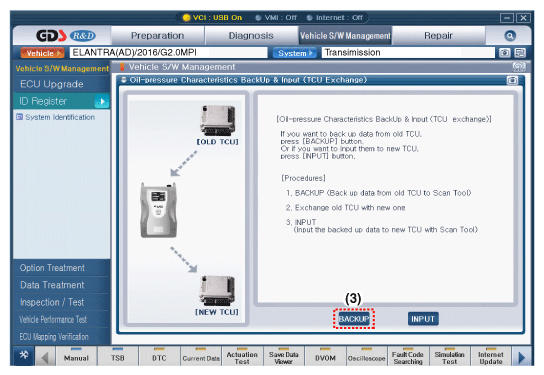

Fig 3: Screen Display - Oil-Pressure Characteristics Backup (TCM Exchange; 3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF.
Disconnect the negative (-) battery cable.
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Disconnect the TCM connector (A).

Fig 4: Disconnecting TCM Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fixing clip (A) of wiring.
Remove the TCM (B).

Fig 5: Removing Wiring Fixing Clip And TCM

Courtesy of HYUNDAI MOTOR AMERICA
