Components And Components Location: Component

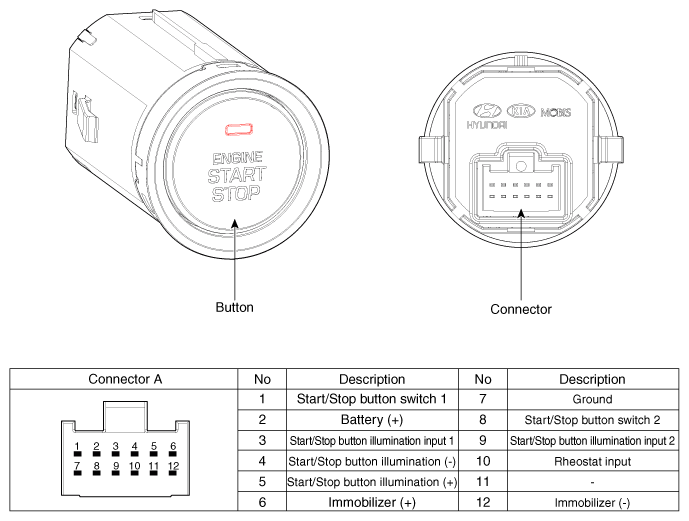

Fig 1: Locating Start And Stop Button And Connector
G12113813Courtesy of HYUNDAI MOTOR AMERICA
