Signal Waveform

Fig 1: Screen Display - Duty Control EEGR Motor (-) At Deceleration Or Idle
G12111475Courtesy of HYUNDAI MOTOR AMERICA

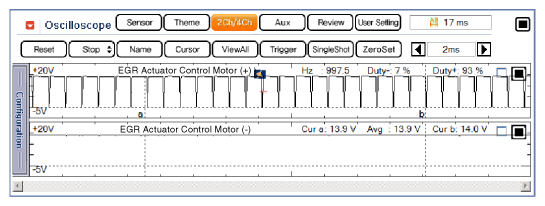

Fig 2: Screen Display - Duty Control EEGR Motor (+) At Acceleration
G12111476Courtesy of HYUNDAI MOTOR AMERICA
