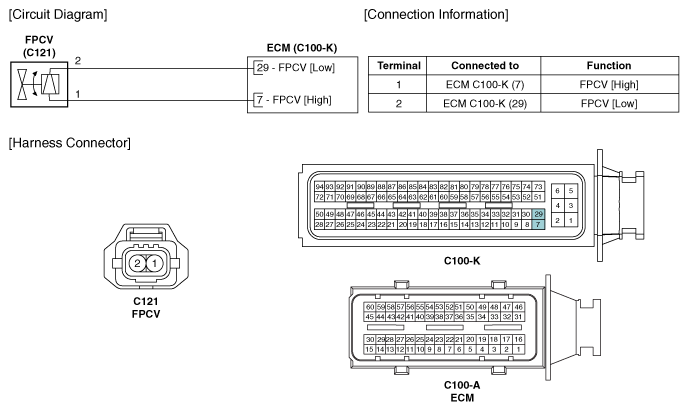

Home › Hyundai › 2017 › Ioniq Hybrid Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Fuel Pressure Control Valve › Schematic Diagrams › Circuit Diagram
