Components And Components Location: Components

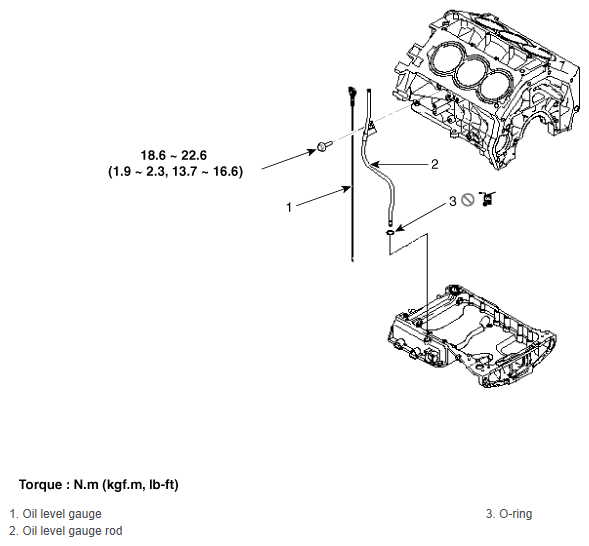

Fig 1: Level Gauge & Pipe Components With Torque Specifications
G12033737Courtesy of HYUNDAI MOTOR AMERICA
