Variable Intake Solenoid (VIS) Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

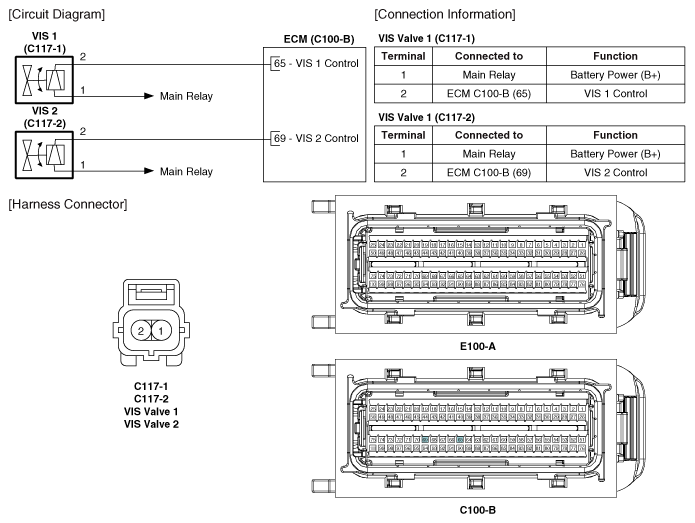

Fig 1: Variable Intake Manifold Solenoid Valve Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
